THE NEW HYBRID TRANSFER TABLE
The new Cmax Xray table by STERIS provides a complete solution for today’s operating theatre requirements. Its watchwords? Versatility and rigour!
Versatility because this hybrid table covers a very wide range of surgical applications, with or without imaging: gynaecology, urology, orthopaedics, neurosurgery, cardiac and vascular surgery, minimally invasive surgery, etc.

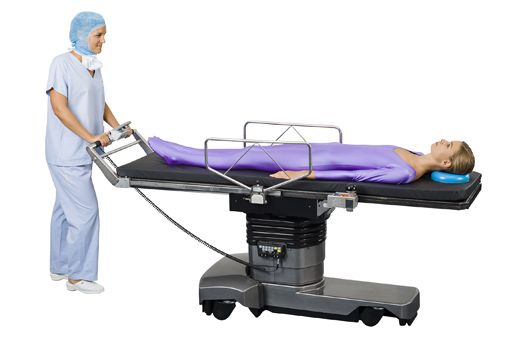

Our other watchword is ‘rigour’ because the STERIS Cmax Xray applies a very high standard to all of its functionalities. Powered transfer, the longest 360° radiolucent surface on the market (1.33 m with headrest), the largest lateral tilt (20°) and Trendelenburg/Reverse Trendelenburg amplitudes (30°), the highest standard patient weight capacity (230 kg), etc. It doesn’t get better than this.
Our engineers know that an ergonomic design is essential for all STERIS operating tables. Position adjustments are easy using the STERIS 1 Control remote control. The large backlit screen, ideal for operations with endoscopy, lets you view the position of the table in real time.

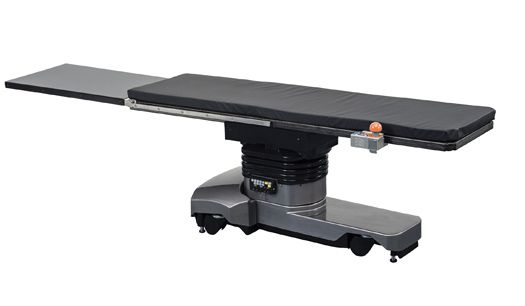

The requirements are even more stringent for the floating tabletop adjustment. The translation control along two axes must be as fast and smooth as possible, for efficient following of the curves of vessels whilst minimising the quantity of radiation emissions.
In this respect, the joystick is amazingly simple. It’s like using a mouse: you have direct, intuitive control with one hand, along straight lines as well as curves. Beside the joystick, there are simple controls to lock
and unlock the floating and adjust the tabletop height.
The CmaxTM Xray table is a Class I CE Marked medical device. To use this equipment safely, carefully read the instructions in the user manual and on the labelling.
|Mains||100-240 VAC 50-60 Hz / 420 VA max 1 phase|
|Protection||Class 1 type B|
|Batteries||2 x 12V 24Ah lead sealed|
|Standalone operation||15 procedures and transfers|
|Maximum charge time||12 h|
|Charge/discharge indicator||Mobile base bargraph + hand control|
|Up/Down:||1,040 mm / 680 mm (stroke 360 mm)|
|Left tilt/right tilt:||20° / 20°|
|Trend/Rev Trend:||30° / 30°|
|Longitudinal slide:||0 / 700 mm (stroke 700 mm)|
|Transverse slide:||-130 / +130 mm (stroke 260 mm)|
|Tabletop length:||2000 mm (excluding extensions)|
|Tabletop width:||520 mm (560 mm including rails)|
|Off-load table weight:||330 kg|
|Maximum weight of patient + accessories:||230kg|
|Maximum capacity up/down:||270kg (patient+accessories) horizontal tabletop, centred slide and load|
|Radiological access||1500 mm of which 1000 mm through 360° (without head section)|
|Floor clearance/Wheel diam||16mm / 100 mm|
